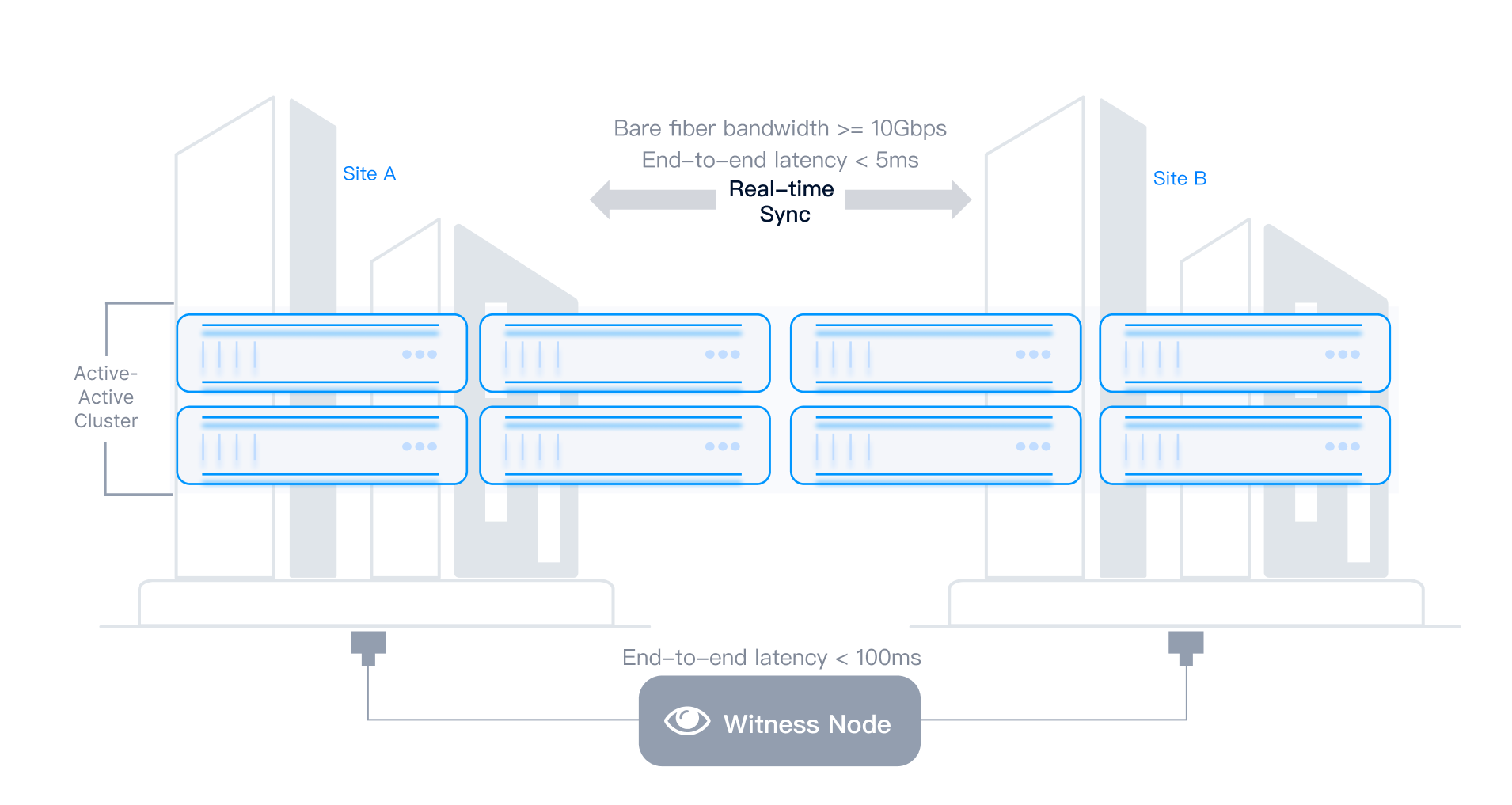

SmartX Hyper-Converged MetroX Architecture
When enterprises face stringent requirements for maintaining the continuity of their core production applications, the traditional three-tier active/active solution is not only complex in architecture but also expensive. SmartX HCI solution supports MetroX cluster architecture across data centers, allowing real-time data synchronization and DR switching of application services between data centers.
* The minimum MetroX cluster configuration requires the deployment of a 3-node cluster at two sites (data centers) within the same city, and a physical or virtual witness node in a remote city. The MetroX cluster’s two main server rooms require a network bandwidth of 10Gb and a network delay of less than 5ms.
Native Support for MetroX Architecture
SmartX hyper-converged system natively supports the MetroX cluster architecture, which can be constructed without third-party software and hardware.
Automatic Recovery of Virtual Machines
This architecture supports real-time data synchronization between data centers. When a server node fails, the virtual machines can automatically resume operation on other nodes in the same or different data center.
HA Cluster Support across Data Centers
This solution supports the deployment of high-availability cluster architecture for applications, and realizes the automatic state awareness and switching of application services between data centers.
Extreme RPO and RTO
This solution can be used with the applied high-availability cluster architecture to achieve disaster recovery with a zero RPO and near-zero RTO.

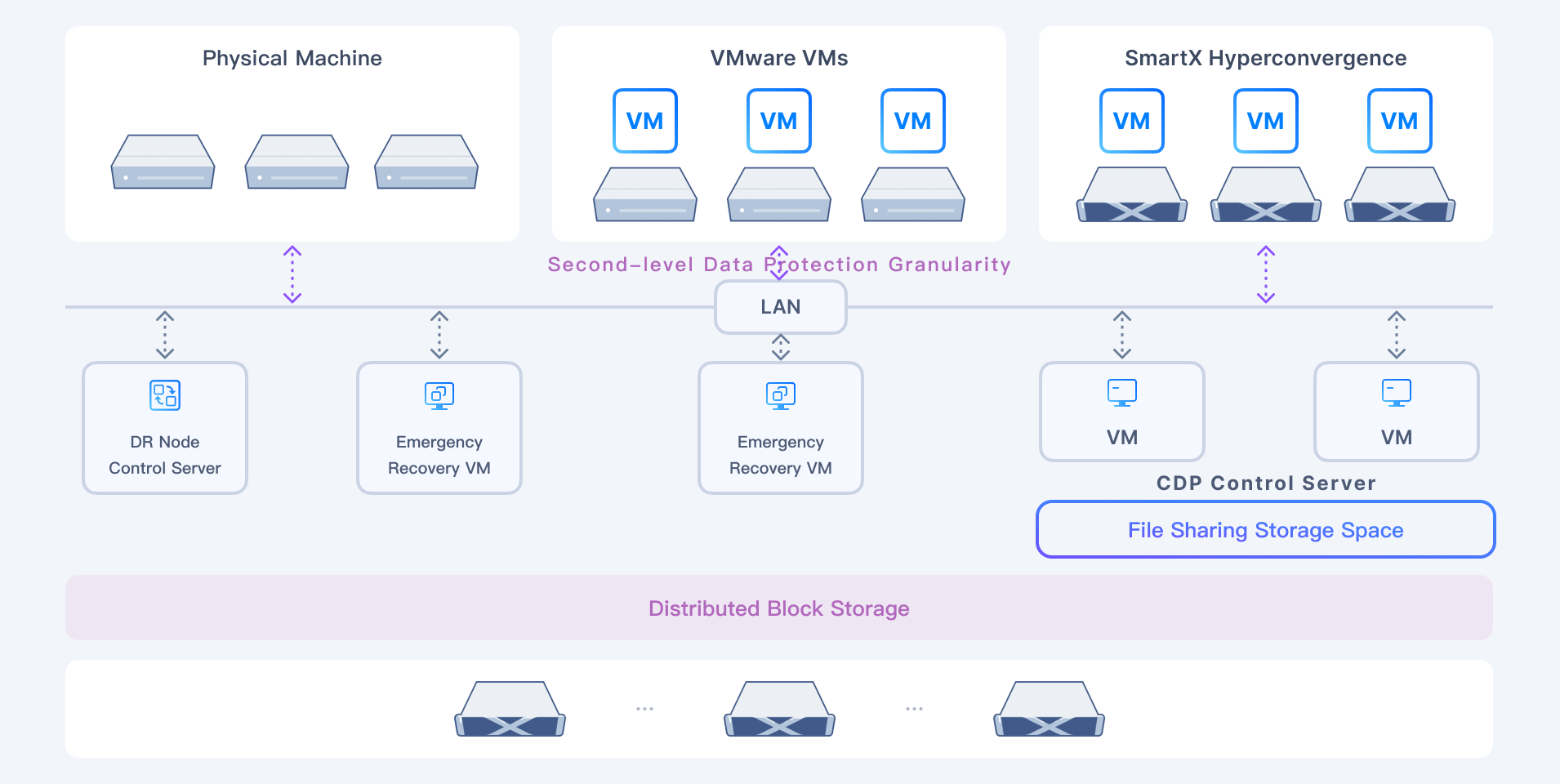

Continuous Data Protection
Results of DR are more important to enterprises than cost. CDP of SmartX HCI can achieve second-level RPO and minute-level RTO.
Quickly Build DR Infrastructure
SmartX HCI integrates distributed block storage with server virtualization. It can build an infrastructure to support virtualization platforms by utilizing general x86/ARM servers and high-speed Ethernet switches.
Capacity Expansion On-demand
Begin with a minimum of three nodes to reduce initial costs; existing infrastructure can be gradually expanded on-demand, adding resources as needed, while maintaining higher resource utilization and a lower total cost.
Excellent RPO and RTO
A disaster recovery effect with second-level RPO and minute-level RTO can be achieved.1
No Geographical Limitation
This solution uses the standard Ethernet for data transmission without the limitations to geographical location, distance and network delay, and can meet the need for long-distance DR.2

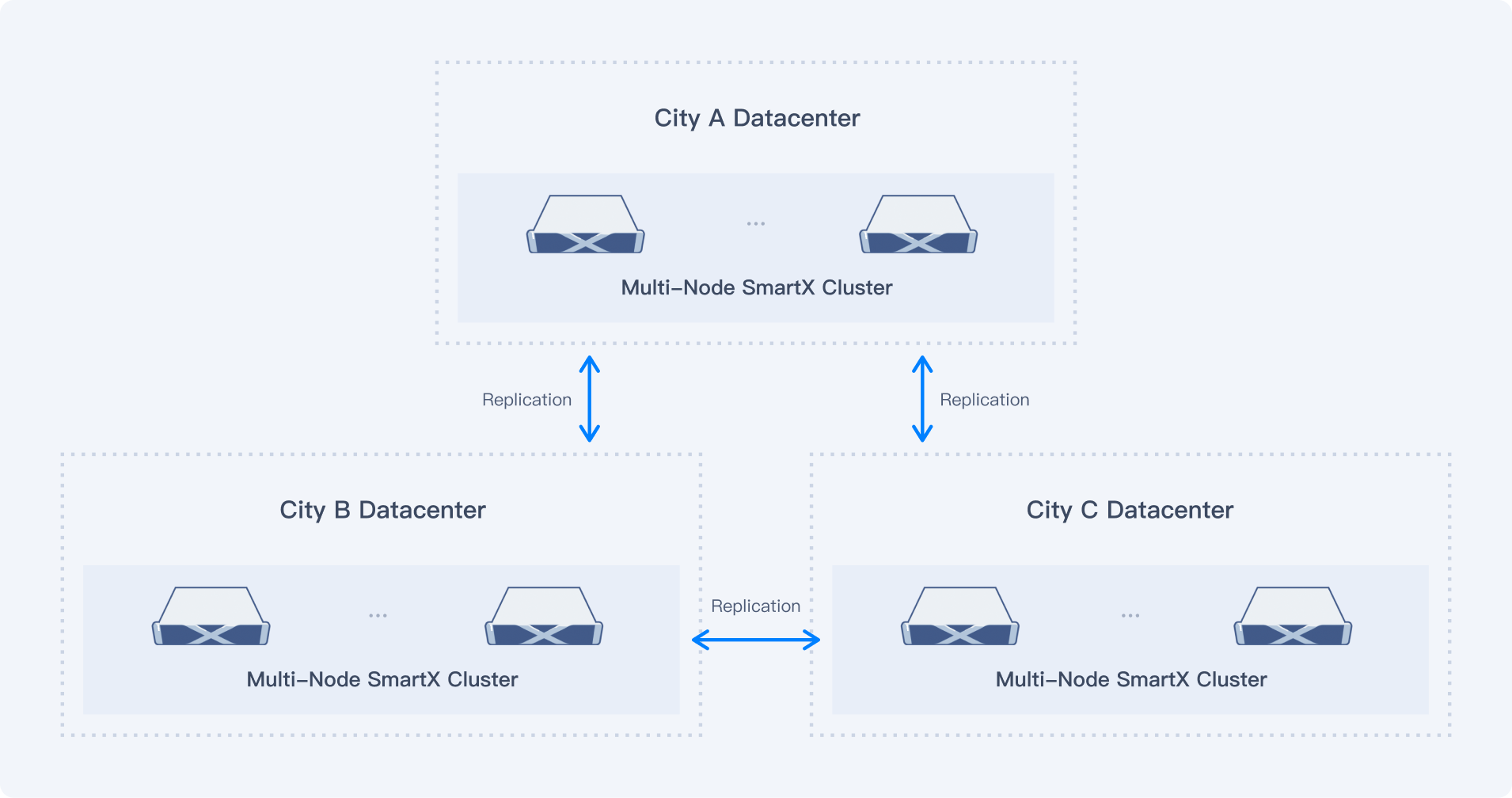

Remote Disaster Recovery
The built-in backup service can overcome geographical and network connection constraints, allowing enterprise data to be backed up across multiple data centers, enabling asynchronous disaster recovery and ensuring business continuity.
Native Backup Service
The built-in backup service allows data to be backed up and restored across multiple data centers to achieve virtual machine disaster recovery.3
Efficient Use of Resource
SmartX HCI can be used simultaneously on the production and disaster recovery sides, and different virtual machine application services can be deployed across data centers to improve resource utilization.
Overall Protection for VM
Snapshot and remote data replication features can protect the VMs in the production environment, and standard operating procedures apply to all supported virtual machine types.
No Geographical Limitation
This solution uses the standard Ethernet for data transmission without the limitations to geographical location, distance and network delay, and can meet the need for long-distance DR.4
DR Resource Pool
SmartX offers an HCI DR resource pool solution for enterprise users who still use physical servers and centralized storage. It is simple, agile, and highly reliable with high performance, lowering the overall cost and management complexity of DR reinforcement.
DR Reinforcement for Production Applications
A high-availability solution built on SmartX HCI with data synchronization can continuously synchronize the production application data to the disaster recovery end to form a redundant architecture.
Excellent RPO and RTO
A disaster recovery effect with second-level RPO and minute-level RTO can be achieved.5
Heterogeneous Support
Source end and DR end can be from different platforms while supporting the same production application, making architecture selection more flexible.
Effective Use of DR Resources
DR environment offers the same functions and performance as the production environment, decentralizing the application services on both production and DR ends, improving disaster recovery resource utilization.
Virtual Machine DR Solution
SmartX HCI combined with CDP can protect virtual machines in the production environment, and continuously synchronize backup data to the DR end.
* The production end uses virtualization platforms supported by CDP software, and the DR end needs to be deployed with the VMware hypervisor. This solution requires a third-party CDP software such as Zerto.
Excellent RPO and RTO
A disaster recovery effect with second-level RPO and minute-level RTO can be achieved.6
Overall Protection for VM
Snapshot and remote data replication features can protect the VMs in the production environment, and standard operating procedures apply to all supported virtual machine types.
Reduce Performance Impact
The resource consumption of CDP software in the production environment can be effectively usually controlled within 5%.
Case Story
Tianjin Trust Cloud-Based "Bimodal" IT Disaster Recovery Infrastructure via HCI
Protects VMware ESXi
Uses SMTX OS (VMware hypervisor)
Uses Zerto to sync data
RPO < 10 secs, RTO < 10 mins7
