In conventional disaster recovery (DR) approaches for enterprise-critical systems, protection is often centered on the data layer, with backup and replication treated as the primary concerns. Yet this model frequently leaves the business layer and the control layer insufficiently covered. As a result, even when data remains recoverable during an actual disaster, the complexity and uncertainty of service restoration can prevent the overall DR framework from fully meeting the continuity demands of mission-critical workloads.
SmartX ECP 6.3 addresses this gap by introducing VM-level native synchronous replication (RPO=0) and the CloudTower control plane high-availability (HA). Together, these capabilities bring storage-array-class disaster recovery into hyperconvergence infrastructure (HCI), enabling full-stack protection across data, application, and platform control to better safeguard business continuity.
Challenges of Mainstream Infrastructure-Level DR Solutions
Regarding critical business systems, DR solutions at the infrastructure layer typically follow two main approaches.
1. Traditional DR Built on Three-Tier Architecture
These solutions usually rely on external storage arrays, replication software, and coordination among multiple batches to achieve data protection and business recovery. In practice, they often face several challenges:
- High cost: Dependence on dedicated storage hardware and multiple overlapping systems results in significant construction and O&M investment.
- Complex architecture: Computing, storage, network, and disaster recovery capabilities are distributed across different systems, leading to heavy deployment and operational burdens.
Fragmented capabilities: Data replication, business recovery, and management control reside in separate layers, making it difficult to form a unified DR system.
2. Stretched HCI Clusters
While this solution simplifies architecture and provides more real-time data protection compared with traditional solutions, it still has limitations in practice:
- Cluster-level protection: It is difficult to implement differentiated DR for VMs based on business importance, and non-critical workloads still bear the same high protection cost as critical ones.
- Network requirements: Dependence on stable, low-latency L2 networks makes business continuity sensitive to network fluctuations.
- Limited verifiability: While focusing on high availability, flexibility in data protection policies, DR scheduling, and recovery drills remains constrained.
Given that enterprises increasingly demand an integrated DR system that uniformly offers data protection, business continuity, and control capabilities, the key evolution for enterprise cloud platforms is to provide a comprehensive DR framework that covers different failure scenarios, while maintaining architectural simplicity, real-time performance, flexibility, and verifiability.

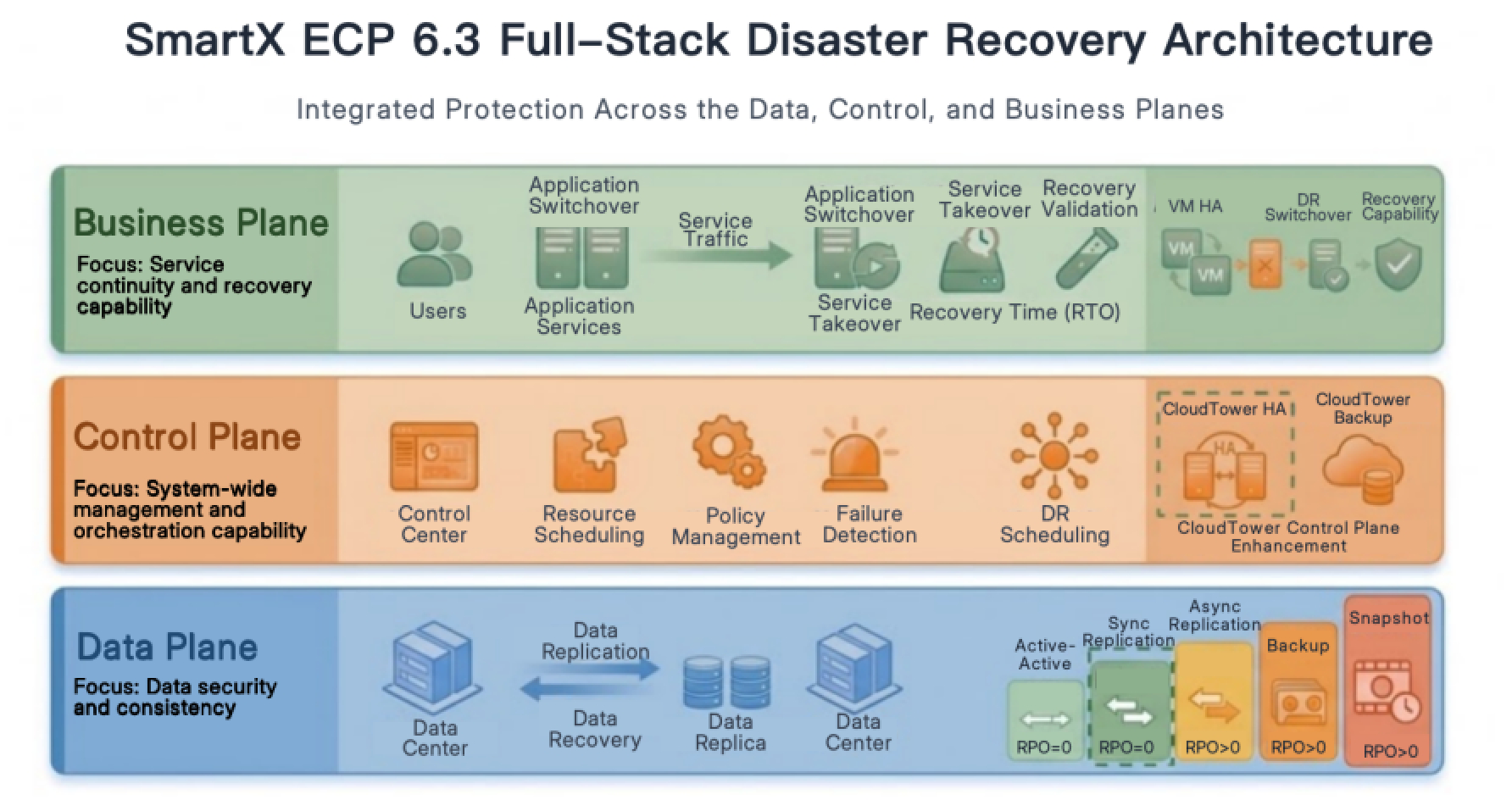

SmartX ECP 6.3: Full-Stack DR with Native Synchronous Replication & CloudTower HA
SmartX ECP 6.3 is designed to deliver a native DR system within the hyperconverged architecture, providing DR capabilities comparable to high-end storage arrays. This release focuses on strengthening two core capabilities.
VM-Level Native Synchronous Replication (RPO=0)
In the traditional architecture, achieving RPO=0 synchronous replication usually relies on high-end storage arrays, which are complex to deploy and expensive. SmartX ECP 6.3 integrates this capability directly into the hyperconverged architecture, becoming the first solution in the domestic HCI market to provide real-time, VM-level synchronous dual-site writes with strong consistency guarantees. This ensures zero data loss while significantly reducing DR system complexity:
- Synchronous data writes into the source and target sites. Under normal network conditions, replica data remains consistent at all times.
- Tolerate Network fluctuations. In case of network latency or short interruptions, replication automatically degrades without blocking source workloads, and resumes syncing to replicas once the network is restored, ensuring eventual consistency.
- No dependency on external storage arrays. Achieve RPO=0 on a standard hyperconverged architecture.
- Protect workloads at the VM level, enabling both flexibility and fine-grained management.
CloudTower Control Plane High Availability (HA)
Beyond data protection, enterprise disaster recovery also depends on reliable management and control. SmartX ECP 6.3 strengthens the HA capabilities of the control plane:
- Support cross-site deployment to prevent single points of failure from affecting overall controllability.
- Even in site-level failure scenarios, CloudTower continues to provide resource scheduling and DR orchestration.
- Guarantees that recovery operations can be executed during DR, not just that data is available for restoration.
By combining existing asynchronous replication and backup capabilities, SmartX ECP 6.3 establishes a full-stack disaster recovery loop spanning both data and control planes. Enterprises gain not only reliable data recovery but also business continuity and unified management, achieving a true upgrade to full-stack DR capabilities.
Technical Insight: Achieving RPO=0 with VM-Level Synchronous Replication
Compared with building active-active stretched clusters, VM-level synchronous replication does not require cluster-level DR construction. It can automatically tolerate DR network fluctuations and reduce the consumption of network resources.
Implementation Mechanism
Data Synchronization

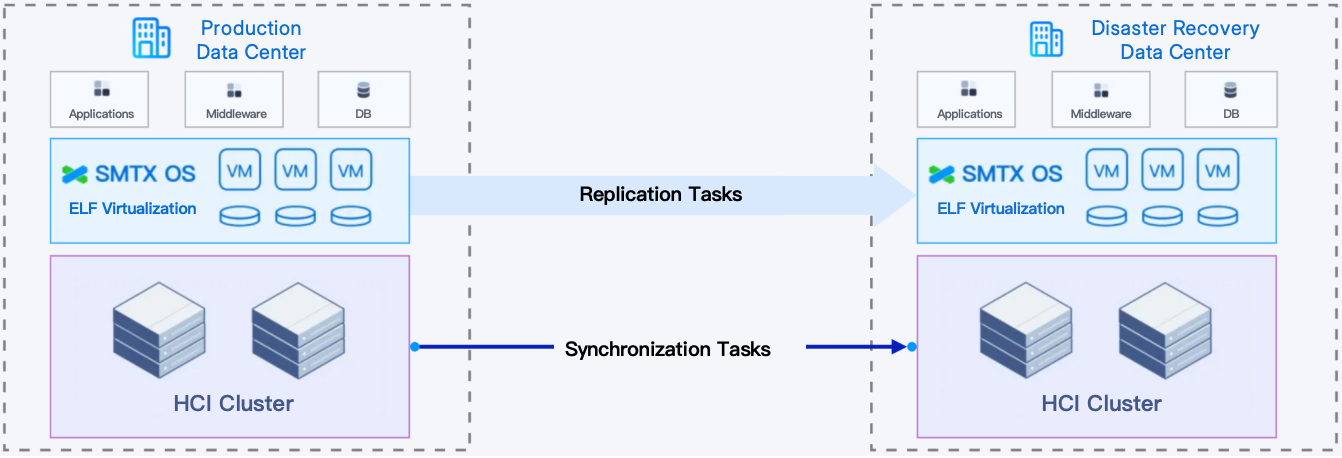

In SmartX ECP, data synchronization is performed in two stages: replication and synchronization.
Replication Tasks
These tasks perform the initial data synchronization between the primary and secondary sites, establishing a consistent data baseline:
- Perform a full data copy of the source VM and create the corresponding replica VM at the target site.
- Establish a consistent starting point between primary and backup data, laying the foundation for subsequent synchronization.
Synchronization Tasks consist of two phases:
- Incremental Catch-Up Phase: During this stage, data discrepancies generated during the replication process are caught up. The latest data is synchronized to the replica to ensure that the primary and backup data achieve strict consistency, enabling a smooth transition to the real-time synchronization phase.
- Real-Time Dual-Write Phase: Once fully synchronized, all writes are applied simultaneously to both the source and target ends. A write operation is considered successful only after completion on both sides. Under normal network conditions, primary and backup data remain strongly consistent at all times, achieving RPO=0.
Failure Handling
- Failover: When the source site becomes unavailable, service can be switched to the replica VMs, allowing the replica to take over production workloads.
- Failback: Once the original site is restored, the replication service performs reverse replication, synchronizing the incremental data generated on the replica during failover back to the original VMs to reestablish consistency between primary and backup.
Note: Currently, failover and failback operations must be performed manually.
Key Features
Automatic Degradation to Prioritize Production
In scenarios such as network fluctuations or increased write pressure, the system can automatically trigger a replication degradation to prioritize the stability of production workloads. This prevents performance fluctuations or service interruptions caused by synchronous replication.
Support Flexible Recovery Point
Multiple methods are supported for generating recovery points. When data is in a ”synchronized“ state, recovery points can be generated periodically. If an anomaly occurs during synchronous replication, the system can automatically create recovery points to preserve critical data. With this feature, users can select from different time points during failback, enhancing both flexibility and control over recovery operations.
Multiple Approaches to Improve Recovery Efficiency
- Network Mapping: During failover, replica VMs can automatically adopt network and IP settings according to predefined policies. This adapts to disaster recovery deployment requirements in complex network environments, reduces manual intervention, and accelerates business takeover. In scenarios where primary and replica reside in the same VPC and subnet, network-level HA can be further achieved.
- Disaster Recovery Orchestration: Supports batch execution of failover operations and allows defining the startup sequence and delay of VMs. This ensures workloads recover in the correct order according to dependencies, avoiding service anomalies caused by improper startup order.
Efficient Disaster Recovery Drill Options
Multiple DR drill modes are provided to balance safety and effectiveness, meeting both routine exercises and rigid compliance requirements:
- Non-intrusive simulation mode: During drills, replica VMs run in an isolated network. Users can access recovery point data and validate business availability, ensuring DR procedures are reliable and verifiable without impacting production.
- Realistic scenario mode: Scheduled failovers are conducted in accordance with the actual DR process, including a full business takeover and switching operations. This validates the system’s recoverability and stability under real-world failure conditions.
Comparison of Disaster Recovery Solutions
Stretch Cluster Active-Active vs. Synchronous Replication
| Feature | Mainstream Stretched Cluster (Including SmartX ECP Active-Active) | SmartX ECP Synchronous Replication |
| Protection Granularity | Cluster-level (Critical and non-critical workloads must be deployed together) | VM-level (Protects critical workloads selectively) |
| Network Requirements | Requires a stable, low-latency L2 network | Supports L3 networks; tolerates certain levels of latency |
| Network Fault Tolerance | ❌ Network anomalies may trigger global failover | ✅ Supports latency tolerance; manual failover per object |
| Fault Domain Isolation | ❌ Sites function as a single logical cluster; no isolation | ✅ Production and DR clusters are completely independent |
| Management Platform | Single control plane (Single CloudTower management) | Supports single or dual control planes (Single/Cross-CloudTower management) |
| Erasure Coding (EC) | ❌ Supports 3-replica mode only | ✅ Supports custom EC/Replica policies |
| Failover Mechanism | Automatic | Manual |
| Recovery Time Objective (RTO) | Unplanned: Automatic failover (minutes) Planned: RTO = 0 | Unplanned: Manual failover (5+ minutes) Planned: Minutes |
| Oracle RAC Support | ✅ Supports shared volumes | ❌ Currently unsupported |
| Deployment Flexibility | Requires symmetrical resource deployment | Supports on-demand, flexible resource deployment |
| Use Cases | Core systems requiring maximum business continuity | Critical workloads balancing data security with cost efficiency |
Typical Use Cases
Stretched Cluster Active-Active: Ideal for core systems with extremely high business continuity requirements:
- No business interruption: Supports automatic failover with ultra-low RTO (minutes or even less)
- Applications with clustering capabilities: Such as Oracle RAC and other applications that rely on shared storage or multi-node coordination
- Mature infrastructure conditions: Stable, low-latency network connectivity between sites with sufficient resource investment.
Synchronous Replication: Ideal for critical workloads that balance data protection with cost control:
- Zero data loss with brief interruption tolerance: Provides RPO = 0 data protection with manual failover.
- More controllable resource investment: Protects only critical workloads without requiring a full active-active deployment.
- More flexible network requirements: Supports cross-L3 network connectivity and tolerates latency and fluctuations.
- Greater architectural flexibility: Allows independent planning of production and disaster recovery resources, enabling gradual evolution of disaster recovery capabilities.
Traditional 3-Tier Architecture DR vs. HCI Synchronous Replication
| Feature | Traditional Three-Tier Architecture DR | SmartX ECP Synchronous Replication |
| Synchronous Replication Capability | Achieved through a combination of storage arrays + virtualization DR products | Natively supported by the platform |
| Protection Granularity | Storage volume / LUN-level protection with unified data protection | VM-level protection for more granular, business-aligned DR |
| Compute-Side Dependency | The compute layer is responsible for VM state synchronization, failover orchestration, resource scheduling, and network recovery | Compute and storage are tightly integrated, with VM state synchronization, failover, resource scheduling, and network recovery automatically handled within a unified management platform |
| Failover Process | The overall switchover process requires cross-system operations and involves complex steps: 1. When a failure occurs at the source site, the storage volume must first be switched to the DR site. 2. The virtualization platform then manually starts the DR VMs or launches them through orchestration tools. 3. Network configuration and resource allocation must be adjusted separately to restore services. | The entire process is completed within a single platform, without cross-system operations, delivering shorter and more predictable RTO/RPO: 1. Once a failure occurs at the source site, failover is initiated in the management platform. 2. The DR cluster VMs are quickly started. Resource scheduling and network configuration are completed automatically at the same time. |
| Fault Domain Isolation | Depends on the overall architecture design and requires additional planning | Production and DR clusters are naturally isolated |
| Operations Model | Multi-platform operations across storage, virtualization, and DR tools | Unified operations through a single management platform |
Typical Use Cases
Traditional 3-Tier DR Architecture: Best suited for a storage-centric data center with mature infrastructure capabilities:
- Well-established storage systems: Existing deployments already include mid-range or high-end storage arrays with mature replication and DR capabilities.
- Preference for standardized and proven solutions: Organizations that favor storage-based DR mechanisms validated through long-term enterprise use.
- Sufficient resources and budget: Able to support the deployment and long-term operation of multiple systems and components.
Synchronous Replication: Best suited for environments seeking architectural simplicity and more flexible disaster recovery capabilities:
- Need to reduce architectural complexity: Integrates compute, storage, and DR capabilities into a single platform.
- Business-oriented data protection: Provides RPO=0 protection for critical workloads at the VM level.
- Unified O&M and monitoring: Centralizes data replication, failover, and recovery workflows within one platform, reducing operational complexity.
Technical Insight: CloudTower Control Plane HA
With CloudTower HA capabilities, SmartX ECP 6.3 not only ensures the continuity of the data plane but also enables automatic failover of the cross-site control plane, delivering more comprehensive disaster recovery protection.

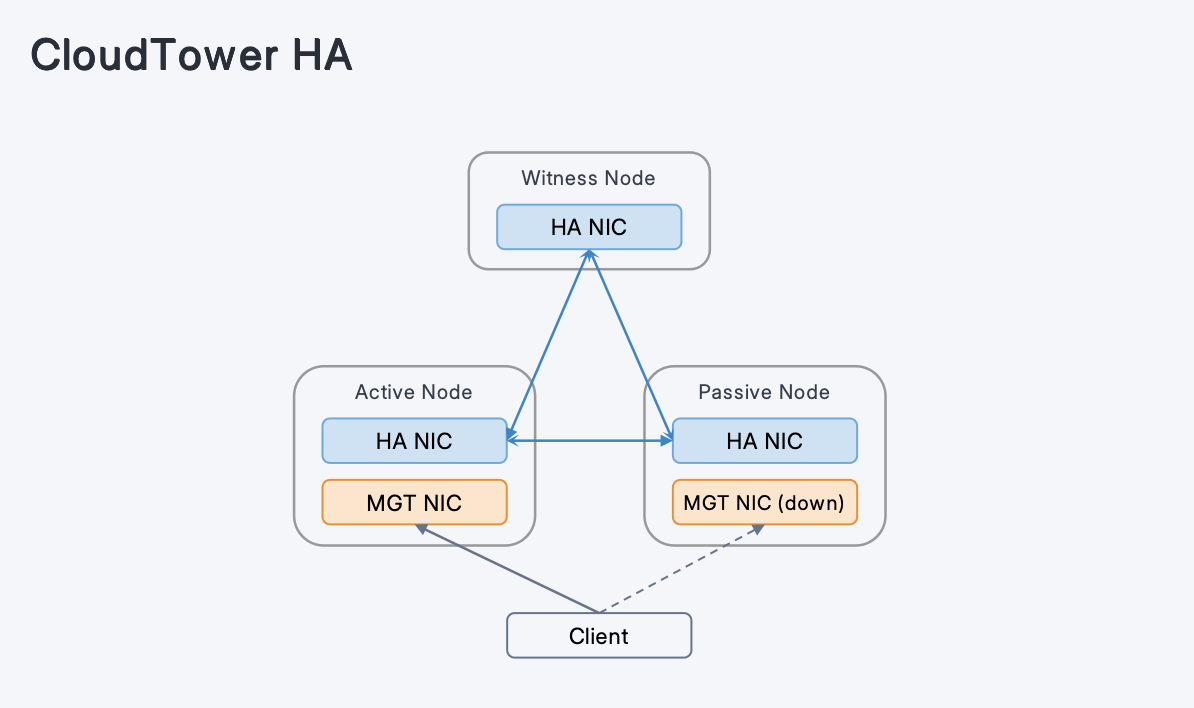

HA Architecture
CloudTower consists of stateless services and stateful services, where stateful services mainly include databases and file data. To ensure continuous availability under failure scenarios, CloudTower supports high availability through cross-node deployment, with certain requirements on network stability and latency. The platform currently adopts a three-node HA architecture consisting of an active node, a passive node, and a witness node:
- Active Node: Hosts the management services and provides full control and management capabilities.
- Passive Node: Keeps data synchronized with the active node and can quickly take over services in the event of a failure.
- Witness Node: Responsible for health monitoring and failure detection, triggering automatic failover while preventing incorrect switchover under abnormal conditions.
At the data level, the database maintains consistency between the active and passive nodes through the synchronization mechanism, ensuring that in the event of a failover, the passive node can quickly take over services based on the latest data, thereby achieving continuous availability of the management plane.
Key Features
- Automatic failure detection and failover: Supports automatic health checks for the cluster and critical components. When an abnormal condition is detected, the system automatically triggers failover, enabling rapid service takeover and delivering a continuity guarantee with RPO = 0 and RTO ≤ 5 minutes.
- Cross-cluster and cross-data-center DR support: Supports DR deployment across clusters and data centers, with DR coverage extending to multiple same-city data centers, meeting the high availability and disaster recovery requirements of workloads at different levels.
- Health monitoring and alerting mechanism: Provides continuous monitoring of the HA cluster status. In scenarios such as resource anomalies, node failures, or unhealthy services, it can quickly detect issues and trigger alerts, helping O&M teams locate and resolve problems more efficiently.
Conclusion
To address the more stringent disaster recovery requirements of critical application scenarios, SmartX ECP 6.3 delivers a systematic upgrade to its DR architecture. By strengthening and unifying capabilities across the data plane, business plane, and management plane, it builds a full-stack disaster recovery system spanning data protection, business recovery, and platform control.
- Data Plane: From basic protection to data consistency assuranceBuilding on existing asynchronous replication and backup capabilities, SmartX ECP 6.3 introduces native synchronous replication to enable real-time data synchronization and data consistency assurance, delivering RPO=0 protection for critical workloads.
- Business Plane: Assisted Recovery and Improved Operational EfficiencyWith failure handling mechanisms and network remapping capabilities, workloads can be taken over and restored in an orderly manner according to predefined policies during disaster scenarios. This reduces the complexity of manual intervention and improves the predictability and efficiency of business recovery.
- Control Plane: From single-point management to highly available schedulingBuilding on CloudTower’s existing backup management capabilities, SmartX ECP 6.3 introduces a CloudTower HA architecture to ensure the control plane remains continuously available during disaster scenarios, enabling unified scheduling and uninterrupted operations throughout the recovery process.
Together, these three planes form a full-stack disaster recovery loop covering data protection, business recovery, and platform control. Disaster recovery is no longer limited to “recoverable data” — it evolves into a more complete capability where businesses can be recovered, processes can be controlled, and systems can remain continuously available.
